The ARMORFORM® Advantage

Mobilization

Simple Job Mobilization

ARMORFORM® can be rapidly shipped anywhere in the world. Simply shipping the lightweight forms leads to freight cost savings. Additionally, the concrete can be procured from a local supplier, which leaves less markup for the end user.

Installation

Ease of Installation

ARMORFORM® Fabric Forms are delivered to the job site ready to fill. Installation consists of preparing the area, laying out the fabric forms, and filling them with concrete through a small-line concrete pump. No additional forming materials (wood, steel, etc.) or concrete finishing is required. The fabric forms themselves to ensure that the concrete assumes the proper configuration, contours, dimensions, and thickness. A small crew can handle the installation, and fabric forms can be installed without dewatering the site.

Equipment

Minimal Equipment

Once the job site is prepared, simple hand tools and a concrete pump are all that are needed. Pumping can be performed from up to 800 feet away, reducing the need for large handling equipment or access improvements. Issues with remote and limited access are significantly reduced.

Hydraulics

Management of Hydraulics

Many ARMORFORM® Fabric Forms construct concrete linings and mats in various patterned surfaces. These patterns create low or high hydraulic friction coefficients, depending on the selected product. These options mean designers can affect the flow characteristics of a channel, creating the opportunity for an "engineered" hydraulic system. By choosing the correct style of form, in-channel flow can be slowed, reducing downstream velocities and discharge turbulence, or a hydraulically efficient, smooth form can be chosen to maximize drainage from a given area.

Many styles of ARMORFORM® are manufactured with built-in filter drains that reduce hydrostatic pressure, while others can be retrofitted with weep tubes to allow proper relief.

Fit to Field

Adaptation to Soil Contours

Filled-in-place fabric forms accommodate uneven contours, curves, and sub-grades at the time that they are filled. Consequently, the soil and the concrete protection are in intimate contact, reducing the chance of underscour. Some forms create discrete concrete units attached to each other with fabric perimeters and/or embedded cables. As a result, the concrete mats can articulate to adapt to uneven settlement.

Engineering Support

Experienced Personnel

  • Our staff engineers complete thorough plan reviews and assist the project consultant or contractor with a value-engineered alternative to conventional products.
  • Our engineers can perform hydraulic stability calculations to support project consultants with an accurate product selection.

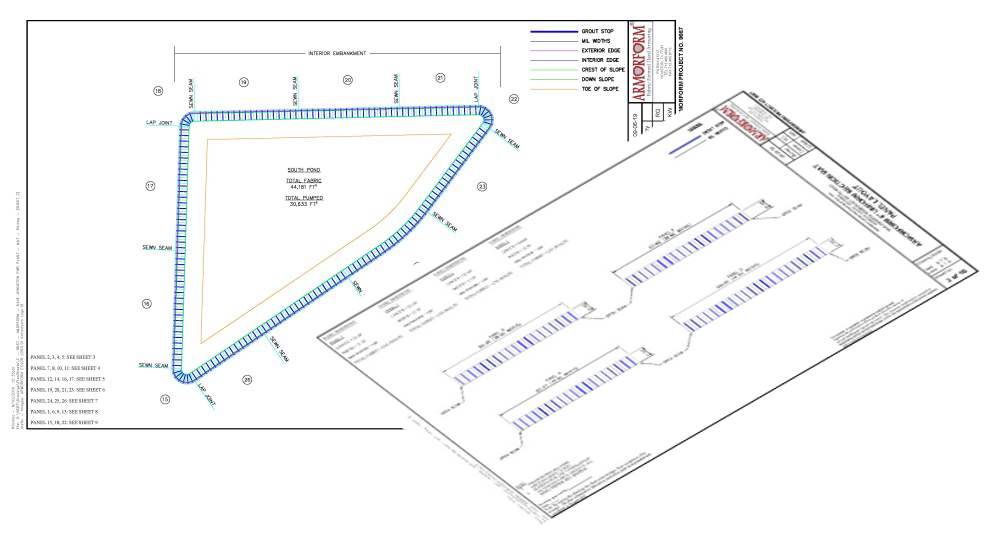

  • Using the latest in Civil 3D drafting software, our design team will meticulously construct a panel layout and fabrication drawings.
  • A complete submittal package, including specifications, details, drawings, material data sheets, material certifications, etc., will be provided.
  • Our staff of experienced construction personnel assists with evaluating the realistic installed cost of our products for use in budgeting or engineers' opinion of probable cost

Industries & Applications

A view of the water from above.

Infrastructure

  • Highways and Bridges
  • Ports, Harbors and Waterfronts
  • Dams and Levees
  • Airports
  • Railways
A person is standing in the water near trees.

Water

  • Rivers, Canals and Inland Waterways
  • Locks and Dams
  • Coastal and Marine
  • Storm Wate
A dump truck dumping gravel on the side of a road.

Environment

  • Waste Management
  • Waste and Wastewater
  • Industrial Waste
  • Mining
A view of an open pit with lots of dirt.

Energy

  • Conventional Generation
  • Hydropower
  • Nuclear Power
  • Oil and Gas – Offshore/Onshore
A pond with trees and flowers in the background.

Linings

  • Storm Sewer Outfalls
  • Channel Lining
  • Ponds
  • Levee Protection
  • Embankments
  • Geo-membrane Ballast/Protection
A bridge over water with a fire hydrant on the side.

Scour Protection

  • Spillway
  • Dike Groin
  • Repair of Stone Jetties
  • Seawalls
  • Bridge Abutments
A stream with debris and trees in the background.

Erosion Control

  • Pipeline Shallow Cover
  • Retaining Walls
  • Foundation/Footing Supports
  • Shoreline Revetments
  • Rivers/Channels
  • Streambank
